Bidirectional video and data transmission
iFalcon - Remote Tablet

Details clarity as never seen before

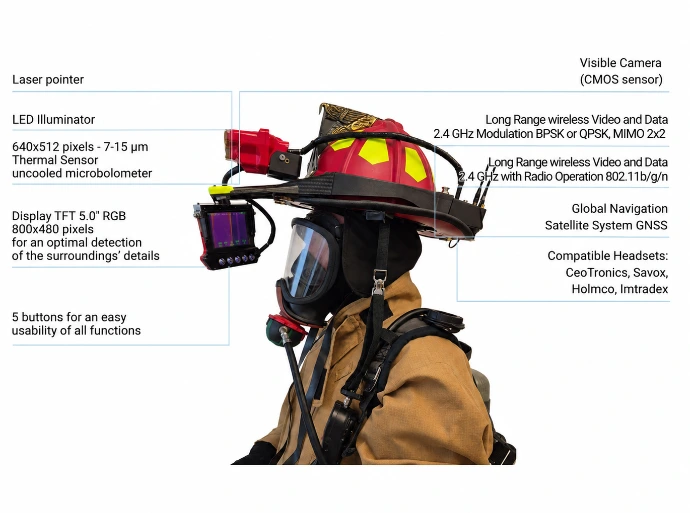

iFalconHM is the first thermal imaging system that allows a real-time, high-power, wireless video and data transmission

Extraordinary high image quality: 640 x 512 pixels • Zoom capacity: 2X / 4X / 8X • Visible CMOS camera • Laser indicator towards the center of the image

Video capture and local storage, including in-line and off-line downloads • Long Range Wireless Video and Data transmitter - 2 options


Possibility to visualize Video in Real time from other selectable iFalconHM • Video and data transmitter for bidirectional remote monitoring


GNSS support: GPS, GLONASS, Galileo and Beidou • Remote control of the parameters


iFalconHM-US-MIL
Bidirectional video and data transmission
iFalcon - Remote Tablet
Details clarity as never seen before

iFalconHM
is the first thermal imaging system that allows a real-time, high-power, wireless video and data transmission

• Extraordinary high image quality: 640 x 512 pixels • • Zoom capacity: 2X / 4X / 8X •
• Visible CMOS camera •
​
• Laser indicator towards the center of the image•

• Video capture and local storage•
• Long Range Wireless Video and Data transmitter - 2 options •

• Possibility to visualize Video in Real time from other selectable iFalconHM •
• Video and data transmitter for bidirectional remote monitoring •

• GNSS support: GPS, GLONASS, Galileo, Beidou •
•
Remote control of the parameters •


iFalconHM-US-MIL includes:

1 iFalconHM System with Thermocamera
and Display LCD 5.0"


2 Li-Ion Battery for iFalconHM

1 EL-BT-CRG-WP: Wall Plug Battery Charger

1 Carrying case



​​ ​ ​ ​ ​ ​ ​Material​ ​ ​ ​ ​ ​ ​ ​ ​Flame Retardant Radel® Ca​rbon Fiber with flame retardant resins​ ​ ​ ​


​ ​​ ​ ​ ​ ​ ​ ​Sealing ​ ​ ​ ​ ​ ​ ​​ ​IP​68



​ ​ ​ ​ ​ ​ ​Dimensions ​ ​ ​ ​ ​ ​ ​450x180x285mm (L​xWxH)


​ ​ ​ ​ ​ ​Weight​ ​ ​ ​ ​ ​ ​ ​ ​ 1.65kg (including battery)



   ​ ​ ​ ​ ​ ​Thermal D​etector ​ ​ ​ ​ ​ ​RADIOMETRIC, 640x512 pixels, uncooled microbolometer

​​ ​ ​ ​ ​ ​ ​
​ ​ ​ ​ ​ ​Spectral Response ​ ​ ​ ​ ​7.5-13.5 microns
​ ​


​ ​ ​ ​ ​ ​ ​​​Lens & Protective Window​​​​ ​ ​ ​ ​Ge​rmanium



​ Field of View ​50°H x 37°V


​ ​ ​ ​ ​ ​ ​Frame ​Rate ​ ​ ​ ​ ​ ​ ​50Hz or 60Hz



   ​ ​ ​ ​ ​ ​Display ​ ​ ​ ​ ​ ​ ​ ​TFT 5.0” RGB 800x480pixels

​​ ​ ​ ​ ​ ​ ​
​ ​ ​ ​ ​ ​Battery ​ ​ ​ ​ ​ ​ ​​ ​Li-Ion Intrinsecally Safe
​ ​ ​ ​


​ ​ ​ ​ ​ ​ ​Mission Life ​ ​ ​ ​ ​ ​​ ​>2h (only thermal); >40min (all on)



Compass Included


​ ​ ​ ​ ​ ​ ​Motionless body detection ​ ​ ​Included



   ​ ​ ​ ​ ​ ​Lying-pose human detection ​ ​ ​Included

​​ ​ ​ ​ ​ ​ ​
​ ​ ​ ​ ​ ​Visible Detector ​ ​ ​ ​ ​ ​CMOS sensor 640x480, 0,025lux, 30Hz
​ ​ ​ ​


​ ​ ​ ​ ​ ​ ​Laser Pointer and LED Lighting ​ ​ ​ ​Included



Warranty 2 years


​ ​ ​ ​ ​ ​Selectable color palette ​ ​ ​ ​12 pal​ettes


​ ​ ​ ​ ​ ​ ​Zoom Capacity ​ ​ ​ ​ ​ ​​ ​2x/4x/8x



   ​ ​ ​ ​ ​ ​Sensitivity ​ ​ ​ ​ ​ ​ ​H​igh Sensitivity 40mK (typical)

​​ ​
​ ​ ​ ​ ​ ​Long Range wireless ​ ​ ​ ​ ​Selectable between:

​ ​ ​ ​ ​ ​Video and Data ​ ​ ​ ​ ​ ​ ​Frequency 902–928 GHz, with

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​BPSK or QPSK MESH MIMO modulation

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Sensitivity -102dBm

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Output power 30dBm

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​And

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Frequency 2.402-2.478 GHz, with
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Modulation BPSK or QPSK

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​MIMO 2x2
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Sensitivity -102dBm
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
Output power 30dBm

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Data Encryptions 128-bit AES


​ ​ ​ ​ ​ ​ ​Video and Audio Storage ​ ​ ​ ​48 hours minimum
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Format MPEG 4
- H264



Approvals ​ ​ ​ ​ ​ ​ ​MIL-STD-810H (High Temperature, Salt Fog)
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
IP68


​ ​ ​ ​ ​ ​Environment ​ ​ ​ ​ ​ ​ ​-20°C to 85°C (-4°F to 185°F) > 60 minutes
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​150°C (302°F): 15 min
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​260°C (500°F): 5 min


​ ​ ​ ​ ​ ​ ​Compliant with standard EN443


​ ​ ​ ​ ​ ​GNSS (GPS, Galileo, Baidu)



   ​ ​ ​ ​ ​ ​Possibility to visualize Video in Real time from other selectable iFalconHM

​​ ​ ​ ​ ​ ​ ​
​ ​ ​ ​ ​ ​Included iFalconAPP-FULL
​


​ ​ ​ ​ ​ ​ ​​​





Material

Flame Retardant Radel®

Carbon Fiber with flame retardant resins

Sealing

IP68

Dimensions

450x180x285mm (LxWxH)

Weight

1.65kg (including battery)

Thermal Detector

​RADIOMETRIC
640x512 pixels,
uncooled microbolometer

Spectral Response

 7.5-13.5 microns

Lens & Protective Window

Germanium

Field of View

50° H; 37°V;

Visible Detector

CMOS sensor 640x480,
0,025lux, 30Hz​

Frame Rate

50Hz or 60Hz

Display

 TFT 5.0” RGB
800x480pixels

Battery

 Li-Ion Intrinsecally Safe

Mission Life

>2h (only thermal); >40min (all on )

Warranty

2 years

Zoom Capacity

 2x/4x/8x

Sensitivity

High Sensitivity 20mK (typical)

Compass

Included

Motionless body detection

Included

Lying-pose human detection

Included

 Laser Pointer and LED Lighting

Included

Selectable color palette

12 palettes

Environment

-20°C to 85°C (-4°F to 185°F) > 60 minutes
​150°C (302°F): 15 min
​260°C (500°F): 5 min

Long Range Wireless Communication
Video and Data

​Selectable between:
Frequency 902–928 GHz, with
 BPSK or QPSK MESH MIMO modulation
Sensitivity -102dBm
Output power 30dBm
​Or
​Frequency 2.402-2.478 GHz, with
​Modulation BPSK or QPSK
​MIMO 2x2
​Sensitivity -102dBm
Output power 30dBm
Data Encryptions 128-bit AES

Video and Audio Storage

48 hours minimum
Format MPEG 4 - H264

Approvals

MIL-STD-810H (High Temperature, Salt Fog)
​IP68

Compliant with standard EN443

GNSS (GPS, Galileo, Baidu)

Possibility to visualize Video in Real time
from other selectable iFalconHM

Included iFalconAPP-FULL


iFalconHM-US-MIL Datasheet
