iFalconHM-FULL


iFalconHM-Full


​ ​ ​ ​ ​ ​ ​OVERWIEW​​   SPECIFICATIONS   PHOT​​OS   DATASHEET​​

​ ​ ​ ​ ​ ​ ​OVERWI​​​​EW   SPECIFICATION​​S     ​​PHOTOS   DATASHE​​ET

Bidirectional video and data transmission
iFalcon - Remote Tablet

Details clarity as never seen before

iFalconHM is the first thermal imaging system that allows a real-time, high-power, wireless video and data transmission

Extraordinary high image quality: 640 x 480 pixels • Zoom capacity: 2X / 4X / 8X • Visible CMOS camera • Laser indicator towards the center of the image

Video capture and local storage, including in-line and off-line downloads •  Long Range Wireless Video and Data transmitter - 2 options


  Video and data transmitter for bidirectional remote monitoring •

 GNSS support: GPS, GLONASS, Galileo and Beidou • Remote control of the parameters

iFalconHM-FULL includes:

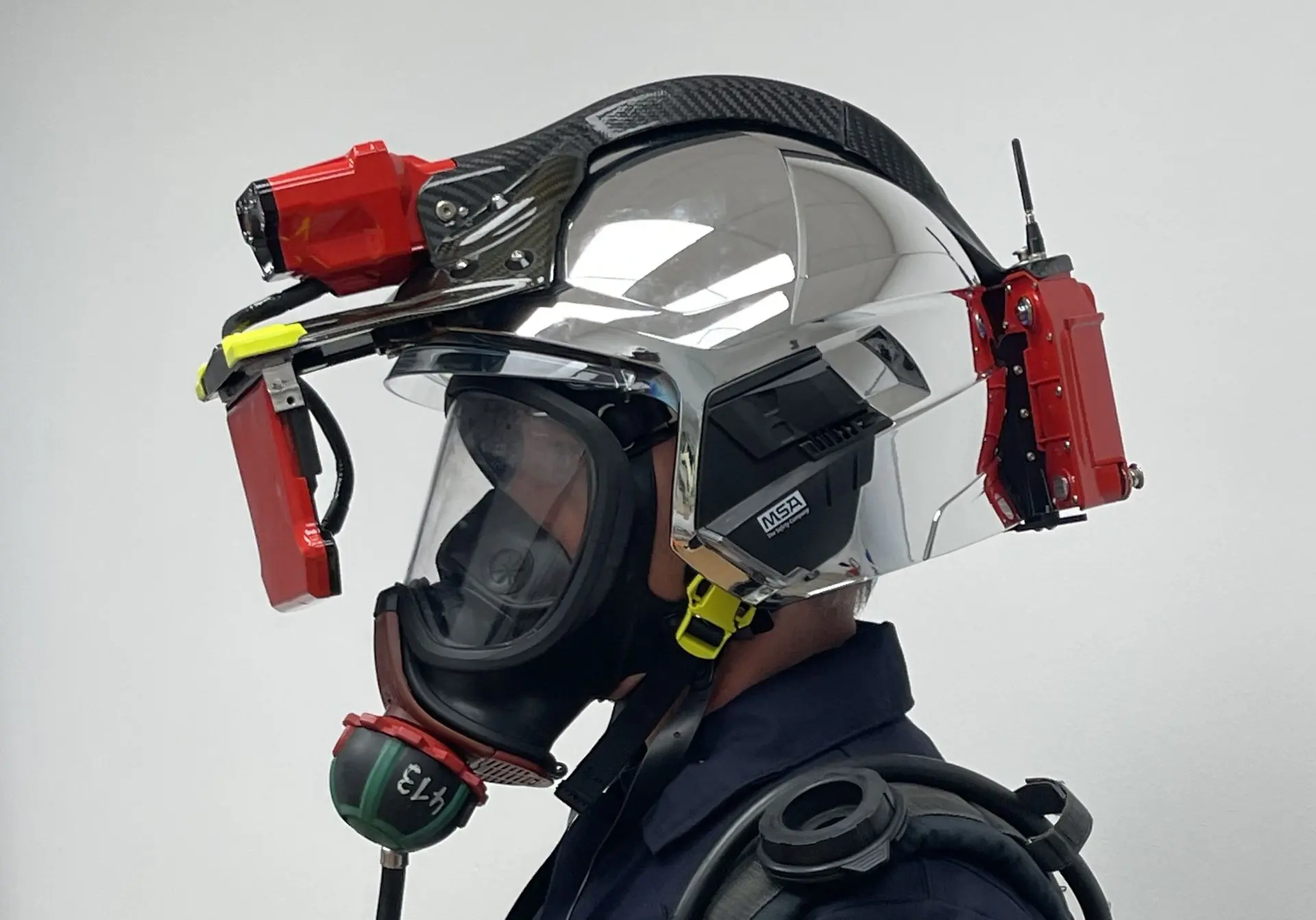

1 iFalconHM System with Thermocamera and Display LCD 5.0"

2 Li-Ion Battery for iFalconHM

1 EL-BT-CRG-WP: Wall Plug Battery Charger

1 Carrying case

​


iFalconHM-完整版双向视频
数据传输
iFalcon - 远程平板
前所未见的细节清晰度

iFalconHM是第一个允许实时、高功率、无线视频和数据传输的热成像系统。

• 非凡的高图像质量：640 x 480像素
• 可变焦能力：2X / 4X / 8X
 • 可见光CMOS摄像头
​ • 激光指示器指向图像中心

• Video capture and local storage•
• Long Range Wireless Video and Data transmitter
- 2 options •
• Video and data transmitter for bidirectional remote monitoring•

• GNSS支持：GPS、格洛纳斯、伽利略和北斗 • 远程控制参数



                                                        材料                                                                      采用阻燃树脂制成的阻燃Radel®碳纤维

​ ​​ ​ ​ ​ ​ ​        密封等级​ ​         ​​ ​ ​ ​        IP​68


​ ​ ​ ​                                                      ​ 规格 ​ ​ ​ ​ ​          ​ ​                                                       450x180x285毫米 (L​xWxH)

​ ​ ​ ​ ​ ​Weight​ ​ ​ ​ ​ ​ ​ ​ ​1.65kg (including battery)


  ​ ​ ​ ​                 热探测器​ ​ ​ ​ ​                  640x480 像素, 非制冷生物传感器


​ ​ ​ ​ ​         光谱响应​ ​ ​ ​                                  7.5-15微米​ ​ ​

​ ​ ​ ​ ​ ​       镜头和保护窗​ ​                                           锗


​ Field of View ​48°H x 38°V

​ ​ ​ ​ ​ ​       帧率​ ​ ​ ​ ​                                 50赫兹or 60赫兹


   ​ ​ ​ ​ ​         显示器​ ​ ​ ​ ​                            T​FT 5.0​英寸 RGB 8​00x480像素


​ ​ ​ ​ ​       电池 ​ ​ ​ ​ ​ ​ ​​         具有防爆功能的锂离子电池 ​ ​ ​ ​

​ ​ ​ ​ ​ ​       使用时间 ​ ​ ​ ​ ​​                >2小时（仅热成像​）；>40分钟（所有功能开启）


Compass Included

​ ​ ​ ​ ​ ​ ​Motionless body detection ​ ​ ​Included


   ​ ​ ​ ​ ​ ​Lying-pose human detection ​ ​ ​Included

​​ ​ ​ ​ ​ ​ ​
​ ​ ​ ​ ​ ​Visible Detector ​ ​ ​ ​ ​ ​CMOS sensor 640x480, 0,025lux, 30Hz ​ ​ ​ ​

​ ​ ​ ​ ​ ​ ​Laser Pointer and LED Lighting ​ ​ ​Included


       保修         2 年

​ ​ ​ ​ ​ ​Selectable color palette ​ ​ ​ ​12 pal​ettes

​ ​ ​ ​ ​ ​       变焦能力 ​ ​ ​ ​ ​                2x/4x/8x


   ​ ​ ​ ​ ​          敏感度 ​ ​ ​ ​ ​                   高灵敏度40mK（典型值）

​​ ​
​ ​ ​ ​ ​ ​Long Range wireless ​ ​ ​ ​ ​Selectable between:
​ ​ ​ ​ ​ ​Video and Data ​ ​ ​ ​ ​ ​Frequency 2.400-2.4835 GHz, with
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Radio Operation 802.11b/g/n
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Sensitivity -92dBm
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Output power 30dBm
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Or
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Frequency 2.402-2.478 GHz, with
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Modulation BPSK or QPSK
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​MIMO 2x2
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Sensitivity -102dBm
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Output power 30dBm
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Data Encryption 128-bit AES
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​

​ ​ ​ ​ ​ ​ ​Video and Audio Storage ​ ​ ​ ​80 hours minimum
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Format MPEG 4 - H264


Approvals ​ ​ ​ ​ ​ ​ ​CE Marking
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​IP68

​ ​ ​ ​ ​ ​ ​Compliant with standard EN443

​ ​ ​ ​ ​ ​ ​Multiple Wireless frequencies for communication redundancy


   ​ ​ ​ ​ ​ ​Temperature accuracy: +/-10°C

​​ ​ ​ ​ ​ ​ ​GNSS (GPS, Galileo, Baidu)​ ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​ ​

​ ​​ ​ ​ ​ ​ ​ ​​Included iFalconAPP-FULL


Possibility to visualize Video in Real time from other selectable iFalconHM ​

​ ​ ​ ​

​



Material

阻燃Radel®

含阻燃树脂的碳纤维

密封等级

IP68

规格

450x180x285毫米 (LxWxH)

重量

1.65kg (including battery)

热探测器

​RADIOMETRIC
640x512 pixels
uncooled microbolometer

光谱响应

7.5-15 微米

镜头和防护窗

锗

Long Range wireless ​Video and Data

Selectable between:
​Frequency 2.400-2.4835 GHz, with
​Radio Operation 802.11b/g/n
​Sensitivity -92dBm
Output power 30dBm
Or
​Frequency 2.402-2.478 GHz, with
Modulation BPSK or QPSK
MIMO 2x2
Sensitivity -102dBm
Output power 30dBm
Data Encryption 128-bit AES

视场

48°H x 38°V

可见光探测器

CMOS sensor 640x480
0,025lux, 30Hz

帧率

50赫兹或60赫兹

屏幕

 TFT 5.0英寸 RGB 800x480像素

电池

防爆锂离子电池

使用时间

>2小时（仅热成像）；>40分钟（全部开启）

Warranty

2 years

变焦能力

 2x/4x/8x

灵敏度

High Sensitivity 50mK

视频音频储存

至少4小时

MPEG 4格式

Selectable color palette

10 palettes

Compass
Included

Motionless body detection
Included

​Lying-pose human detection
Included

​Lying-pose human detection
Included

​Approvals
CE Marking
IP68

Compliant with standard EN443

Multiple Wireless frequencies
for communication redundancy

Temperature accuracy: +/-10°C

GNSS (GPS, Galileo, Baidu)

Included iFalconAPP-FULL

​Possibility to visualize Video in Real time
from other selectable iFalconHM​
