iFalconHM-Lite​

​

​iFalconHM-Lite​

​

OVERVIEW   SPECIFICA​TIO​​NS​   ​​DATA​​​​SHEET​​S    IMAGE​​S

   OVERWIEV SPECIFICA​TIO​​NS​DATA​​​​SHEET​​S IMAGE​​S

No more micro-screen-related headaches while using a thermal vision
iFalconHM is an Integrated Electronic Safety Equipment (ESE) that enables faster intervention time, better room orientation and less air consumption

Thermal camera 256x192  pixels  •  Laser Pointer and LED Lighting • Selectable color palettes
 Compass  •  Motionless body detection  •  Lying-pose human detection

iFalconHM-Lite includes:

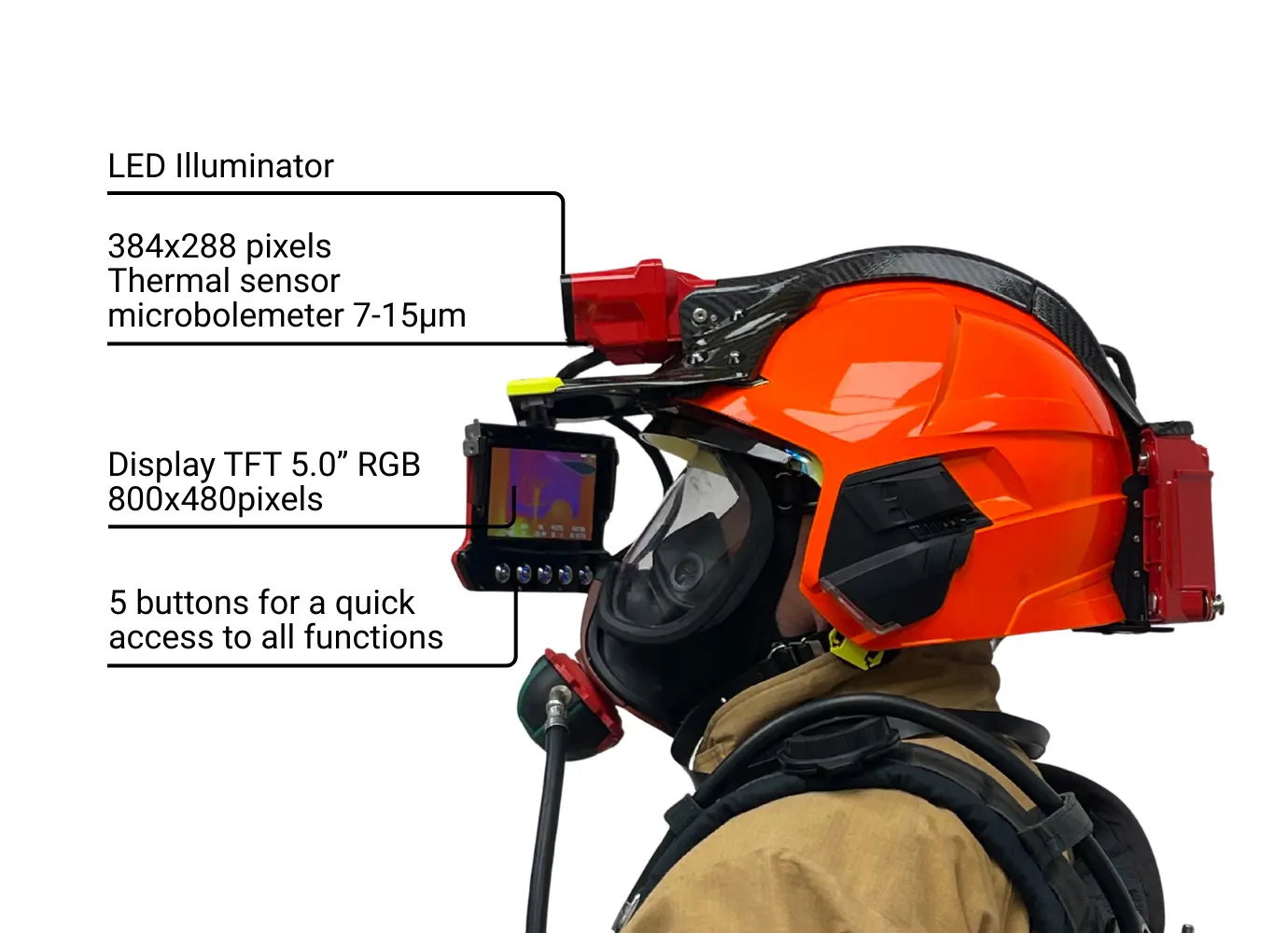

1 iFalconHM System with Thermocamera and Display LCD 5.0"

1 Li-Ion Battery for iFalconHM

1 EL-BT-CRG-WP: Wall Plug Battery Charger

1 Carrying case

​


iFalconHM-Lite
No more micro-screen-related headaches while using a thermal vision
iFalconHM is an Integrated Electronic Safety Equipment that enables faster intervention time, better room orientation and less air consumption

Thermal camera 320x240 pixels
  Laser Pointer and LED Lighting
Selectable color palettes
Compass

Motionless body detection
 Lying-pose human detection


​ ​ ​ ​ ​​Material ​ ​ ​ ​ ​ ​ ​ ​ ​Flame Retardant Radel® Ca​rbon Fiber with flame retardant resins

​ ​ ​ ​ ​Sealing ​ ​ ​ ​ ​ ​ ​ ​ ​IP​68


​ ​ ​ ​ ​Dimensions ​ ​ ​ ​ ​ ​ ​ ​450x180x285mm (L​xWxH)

​ ​ ​ ​ ​Weight ​ ​ ​ ​ ​ ​ ​ ​ ​1.35kg (including battery)

​ ​ ​ ​ ​Thermal Detector ​ ​ ​ ​ ​ ​ ​256x192 pixels, uncooled microbolometer

​ ​ ​ ​ ​Spectral Response ​ ​ ​ ​ ​ ​8.0-14.0 microns

​ ​ ​ ​ ​Lens&Protective Window ​ ​ ​ ​ ​​​​Ge​rmanium


​ ​ ​ ​ ​Field of View ​ ​ ​ ​ ​ ​ ​ ​56° H; 42°V;

​ ​ ​ ​ ​Frame ​Rate ​ ​ ​ ​ ​ ​ ​ ​25Hz or 30Hz


​ ​ ​ ​ ​Display ​ ​ ​ ​ ​ ​ ​ ​ ​TFT 5.0” RGB 800x480pixels

​ ​ ​ ​ ​Battery ​ ​ ​ ​ ​ ​ ​ ​ ​Li-Ion Intrinsecally Safe

​ ​ ​ ​ ​Mission Life ​ ​ ​ ​ ​ ​ ​ ​>2h

​ ​ ​ ​ ​Warranty ​ ​ ​ ​ ​ ​ ​ ​2 years

​ ​ ​ ​ ​Zo​om Capacity                              ​ ​ ​2x

​ ​ ​ ​ ​Sensitivity ​ ​ ​ ​ ​ ​ ​ ​H​igh Sensitivity 50mK (typical)

​ ​ ​ ​ ​
​ ​ ​ ​ ​Visible Camera Detector ​ ​ ​ ​ ​Unavailable

​ ​ ​ ​ ​Laser Pointer and LED Lighting ​ ​ ​ ​Included

​ ​ ​ ​ Selectable Color Palette ​ ​ ​ ​ ​Included

​ ​ ​ ​ ​Long Range Wireless Communication ​ ​Unavailable

​ ​ ​ ​ ​Ima​ge Storage ​ ​ ​ ​ ​ ​ ​Unavailable

​ ​ ​ ​ ​Video and Audio Storage ​ ​ ​ ​ ​Unavailable

​ ​ ​ ​ ​Environment ​ ​ ​ ​ ​ ​ ​ ​-20°C to 85°C (-4°F to 185°F) > 60 minutes
 ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​150°C (302°F): 15 min
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​260°C (500°F): 5 min

​ ​ ​ ​ ​Approvals ​ ​ ​ ​ ​ ​ ​ ​CE Marking
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ IP68

​ ​ ​ ​ ​Compliant with standard EN433 ​ ​ ​ ​ ​




Material

 Flame Retardant Radel®
Carbon Fiber with flame retardant resins

Sealing

 IP68

Dimensions

450x180x285mm (LxWxH)

Weight

1.35kg (including battery)

Thermal Detector

256x192 pixels
uncooled microbolometer

Spectral Response

 8.0-14.0 microns

Lens & Protective Window

 Germanium

Field of View
56° H; 42°V;

Frame Rate

 25Hz or 30Hz

Display

 TFT 5.0” RGB
800x480pixels

Battery

 Li-Ion Intrinsecally Safe

Mission Life

 >2h

Warranty

2 years

Zoom Capacity

 2x

Sensitivity

High Sensitivity 50mK (typical)

Selectable Color Palette

Included

Laser Pointer and LED Lighting

Included

Visible Camera Detector

Unavailable

Long Range Wireless Communication

Unavailable

Image Storage

Unavailable

Video and Audio Storage

Unavailable

Approvals

CE Marking

IP68


Environment
​-20°C to 85°C (-4°F to 185°F)​ > 60 minutes
150°C (302°F): 15 min
​260°C (500°F): 5 min


Compliant with standard EN433
