iFalconNET- MIMO-2.4

Audio/Video/Data Transmitters

Capability of remote support
via bidirectional communication

​ ​ ​ ​ ​ ​ ​OVERWIE​​​W   SPECIFIC​​ATIONS   CONST​​RUCTION   DATASHEE​​T

​ ​ ​ ​ ​ ​ ​OVE​​RWIEW   SPECIFICATIONS  CONSTRUCTION   DATASHEET​

​

iFalconNET- MIMO-2.4

Wi-Fi Long Range (up to 5 km in free space)

iFalconNET- MIMO-2.4

Wi-Fi Long Range
(up to 5 km in free space)

Includes:

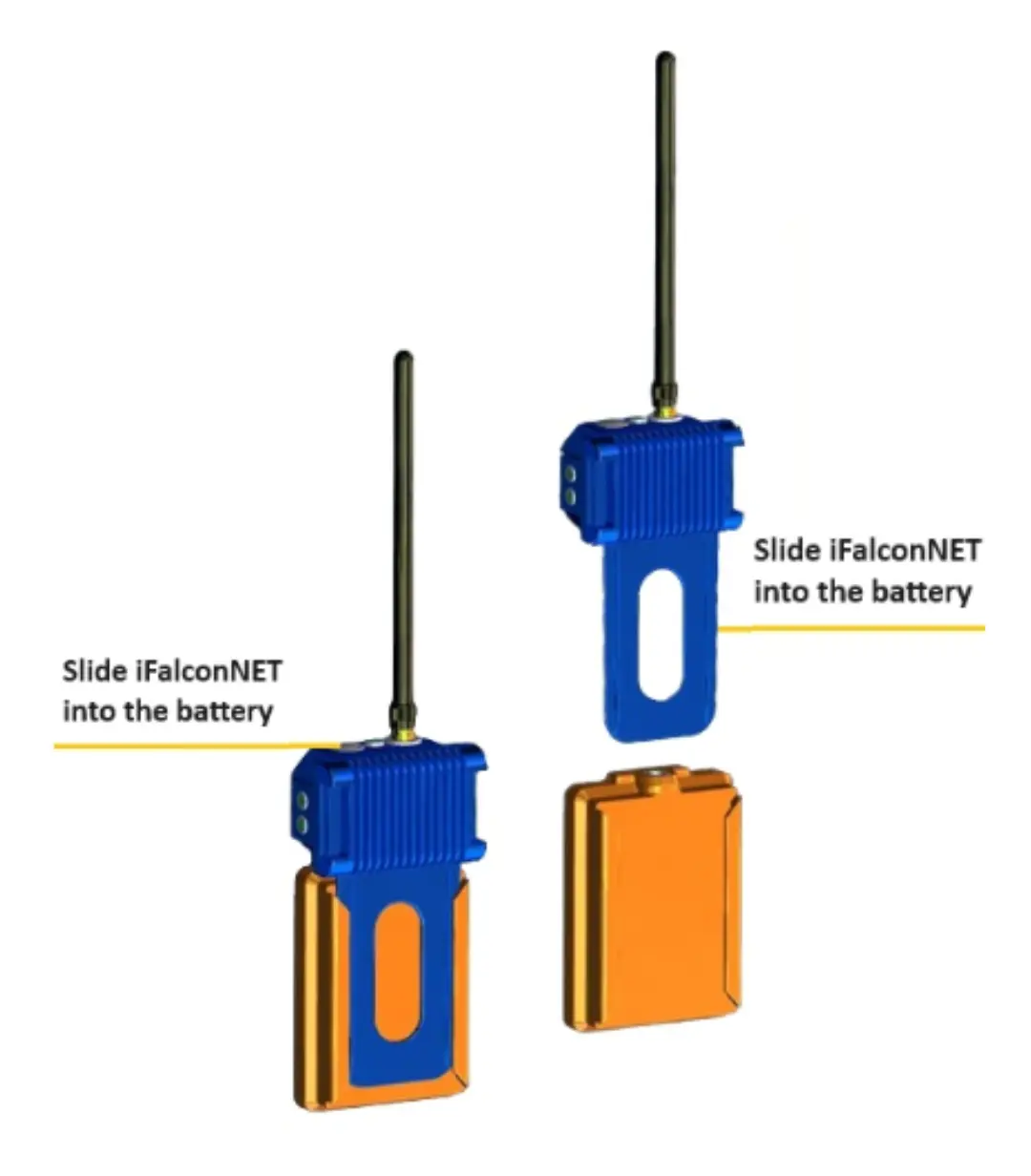

1 iFalconNET REPEATER

1 Li-Ion Battery for iFalconNET

1 EL-BT-CRG-WP: Wall Plug Battery Charger
1 Ethernet cable


Each helmet-repeater-receiver sequence enables the viewing of live video streams from multiple helmets, providing a comprehensive perspective of ongoing operations. In addition to real-time monitoring, the system allows for the recording of both audio and video without requiring remote communication, ensuring that crucial footage is captured for later review and analysis. The repeaters can be strategically positioned at various locations to create an extended communication chain, enhancing coverage even in complex environments. The incident commander can seamlessly monitor the video feeds transmitted from iFalcon helmets on a tablet connected to the final repeater, enabling real-time observation of field activities and improved situational awareness.
This innovative system offers a truly unique wireless communication solution, enhancing coordination and decision-making in critical situations.

Includes:

1 iFalconNET REPEATER

1 Li-Ion Battery for iFalconNET

- 1 EL-BT-CRG-WP: Chargeur de Batterie avec prise murale

1 Ethernet cable


​ ​Comm​unicatio​n ​ ​ ​ ​ ​Transceiver Long Range (up to 1000m in free space)

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Wireless specifications:

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Frequency 2.402-2.478 GHz, with

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Modulation BPSK or QPSK
​ ​ ​ ​ ​ ​ ​ ​ ​ ​MIMO 2x2
​ ​ ​ ​ ​ ​ ​ ​ ​ ​Sensitivity -102dBm
​ ​ ​ ​ ​ ​ ​ ​ ​ ​Output power 30dBm
​ ​ ​ ​ ​ ​ ​ ​ ​ ​Data Encryptions 128-bit AES


​ ​Environmental ​ ​ ​ ​ ​Weight: 1.0kg (including battery)

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Sealing: IP68

​ ​Operating temperature ​ ​ ​ -20°C to 85°C > 60 minutes

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 150°C: 15 minutes

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 260°C: 5 minutes


 ​ ​Logement et Construction ​ ​ Radel® ignifuge et aluminum anodisé
​ ​ ​ ​ ​ ​ ​ ​ ​ Couleur: Gris ou autre demandé à la commande

​​ ​A​pprov​​als ​ ​ ​ ​ ​ ​CE Marking

​ ​ ​ ​ ​ ​ ​ ​ ​ ​IP68


​ ​ ​ ​ ​ ​ ​ ​ ​


- 1 Mallette de transport

Chaque séquence casque-répéteur-récepteur peut être utilisée pour visionner les vidéos des différents casques. L'enregistrement audio et vidéo de l'activité est possible sans qu'il soit nécessaire de communiquer à distance. Les répéteurs peuvent être positionnés à différents endroits pour créer une chaîne de communication. Le commandant peut visualiser les images transmises par l'iFalcon directement sur une tablette connectée à un dernier répéteur afin de suivre les actions sur le terrain.
Il s'agit d'un système de communication sans fil unique en son genre.

​


​ ​Communication ​ ​ ​ ​ ​Long-range transmitter-receiver (up to 5km in free space)

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Spécifications communication sans fil:

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Frequency 2.402-2.482GHz

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Tx power: up to 1W
​ ​ ​ ​ ​ ​ ​ ​ ​ ​128-bit AES data encryption


​ ​Environmental ​ ​ ​ ​ ​ ​Weight: 0.55 kg (including battery)

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Scellage: IP68

​ ​ ​ ​ ​ ​ ​ ​ ​ ​Intrinsically safe Li-Ion battery >28Wh for mission operation > 5h

​ ​Température de fonctionnement ​ ​176°F (80°C)>30 minutes

​ ​ ​ ​ ​ ​ ​ ​ ​​248°F (120°C)>2 minutes

​ ​ ​ ​ ​ ​ ​ ​ ​​-22°F (-30°C)>40 minutes
​ ​ ​ ​ ​ ​ ​ ​ ​ ​-40°F (-40°C)>25 minutes


 ​Logement et construction ​ ​ Radel® ignifuge et aluminum anodisé
​ ​ ​ ​ ​ ​ ​ ​ ​ ​Couleur: Gris ou autre demandé à la commande

​​ ​A​pprobations ​ ​ ​ ​ ​ ​CE Marking

​ ​ ​ ​ ​ ​ ​ ​ ​CEI EN 60068-2-1

​ ​ ​ ​ ​ ​ ​ ​ ​CEI EN 60068-2-2

​ ​ ​ ​ ​ ​ ​ ​ ​CEI EN 60068-2-31

​ ​ ​ ​ ​ ​ ​ ​ ​ETSI EN 301 489-1, ETSI EN 301 489-3

​ ​ ​ ​ ​ ​ ​ ​ ​CEI EN 60529

​ Dans le Paquet ​ ​ ​ ​ ​ ​1​ RÉPÉTEUR
​ ​ ​ ​ ​ ​ ​ ​ ​ ​- ​1 Batterie Externe Li-Ion pour iFalconHP
​ ​ ​ ​ ​ ​ ​ ​ ​ ​- 1 EL-BT-CRG-WP: Chargeur mural de batterie
​ ​ ​ ​ ​ ​ ​ ​ ​ ​- 1 Câble Ethernet

Communication
Transceiver Long Range
(up to 1000m in free space)
Wireless specifications:
Frequency 2.402-2.478 GHz, with

Modulation BPSK or QPSK

MIMO 2x2

Sensitivity -102dBm

Output power 30dBm

Data Encryptions 128-bit AES


Environnement
-​Poids: 0.55 kg (batterie incluse)

- ​Scellage: IP68


Operating temperature
-20°C to 85°C > 60 minutes

150°C: 15 minutes

260°C: 5 minutes​


​Logement et construction
Radel® ignifuge et aluminum anodisé

Couleur: Gris ou autre demandé à la commande



Approbations
CE Marking

IP68
